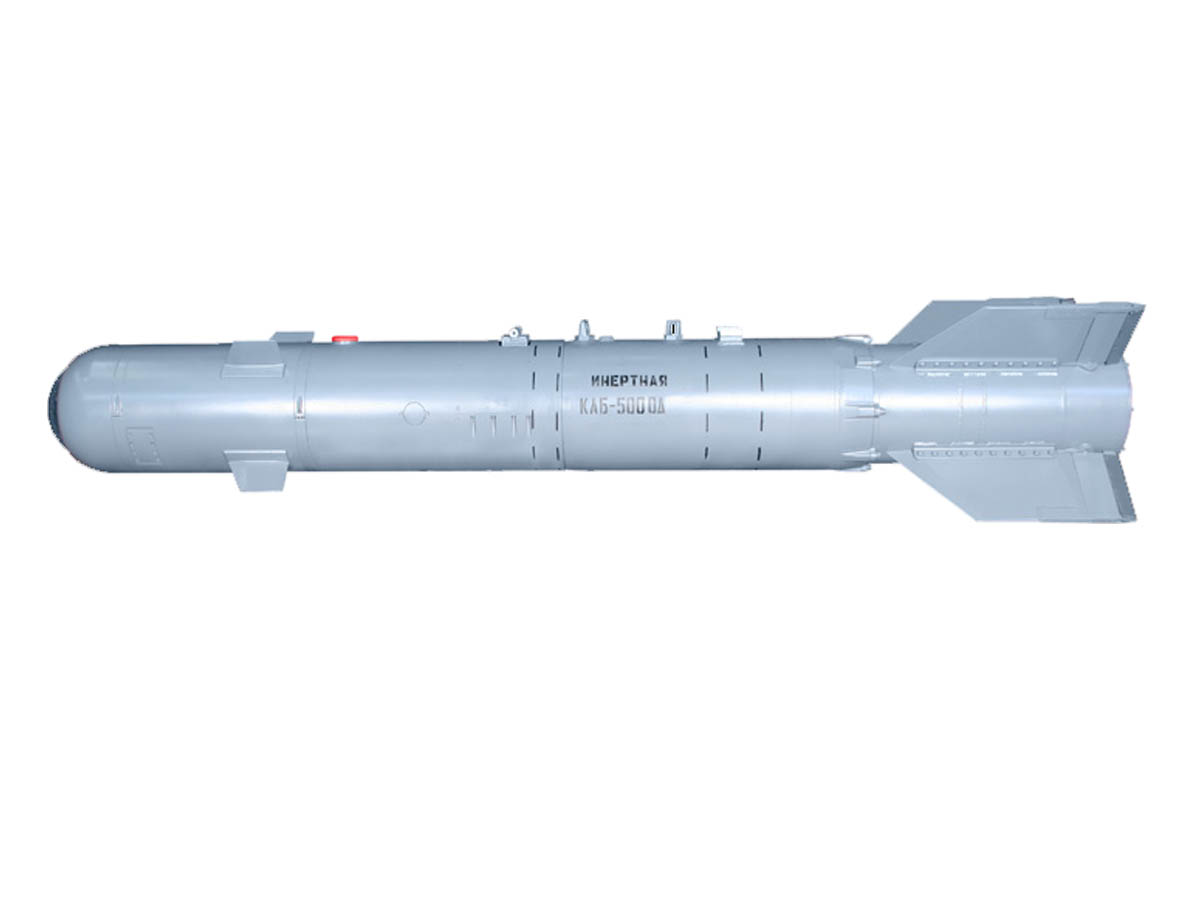

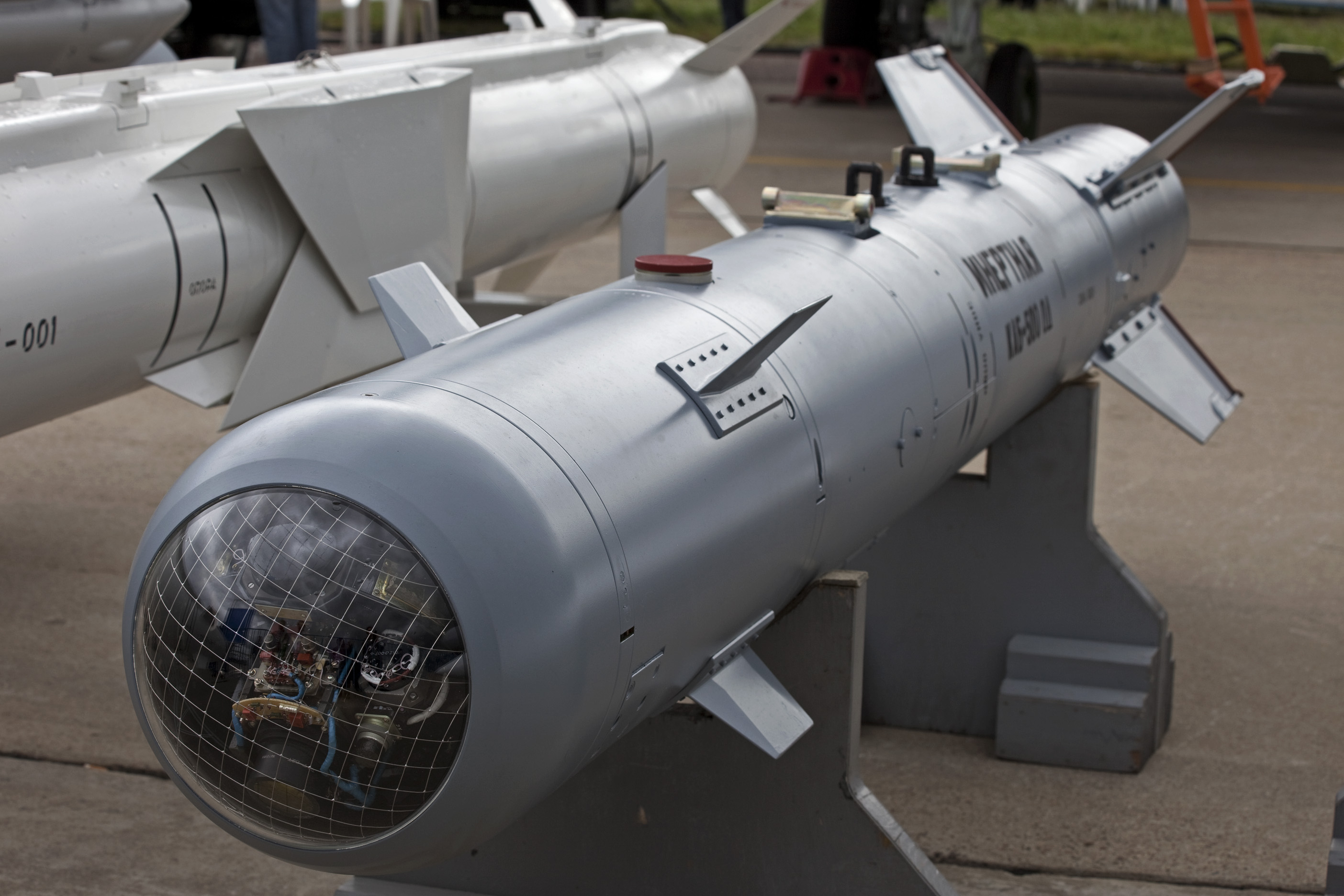

KAB-500-OD

The KAB-500-OD “drop-and-forget” guided bomb with an EO correlation TV seeker refers to the precision-guided weapons and is designed to engage ground targets like weapon emplacements and manpower nestled in the folds of the terrain under normal weather conditions.

The KAB-500-OD is part of the armament systems used in frontline aircraft (fighter-bombers and attack aircraft).

Bomb weight, kg	370
Warhead weight, kg	250
Explosive weight, kg	140
Overall dimensions, m:
length	3,05
diameter	0,35
tail fin span	0,75
-	-
Release altitude, km	0,5-5
Release speed, km/h	550-1100
Target accuracy (CEP), m	4-7
Guidance system	EO correlation
Warhead	high-explosive (fuel-air-explosive)
Fuzing device	instantaneous impact fuze
