Description
A Robot to Save Lives

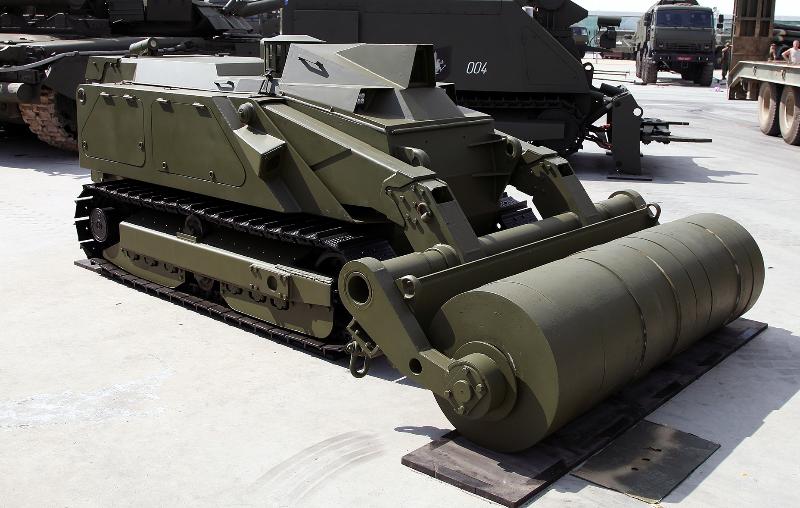

The URAN-6 Multifunctional Robotic Demining System is designed for engineer reconnaissance and area clearing of antipersonnel landmines and explosive objects in the remote control mode.
The Uran-6 is of modular design, features welded armoured hull that provides protection against fragments and blast effect of anti-personnel mines and IEDs. The system comprises the vehicle itself, remote control set consisting of an ergonomic backpack and a control console, maintenance and support kit and a range of detachable equipment.
The robotic system sweeps main types of anti-personnel and anti-tank mines, explosive devices and unexploded ordnance in areas, overgrown with dense vegetation, clogged with industrial waste and hubris, including metal and stone with a probability as high as 98%.
It also performs the following functions:
►breaching of mined blockages, debris clusters, barbed-wire obstacles cutting wires of 8 mm diameter;
►moving solid objects weighing up to 1,000 kg and having dimensions not exceeding 1.0 m with a bulldozer blade outfitted with a rotating gripper;
►filling up trenches, creating mounds and bulwarks, leveling sites;
►digging out neutralized roadside bombs;
►towing of wheeled and tracked vehicles: cars and even tanks – to a short distance.
Detachable equipment can be assembled and dismounted in the field within 20 minutes with a crane-manipulator.
Types of detachable equipment:
►mine flail;
►rotary tiller;
►roller plough;
►bulldozer blade;
►bulldozer blade with a rotating gripper.
| Curb weight, kg |
6,000 |
| Wheel track, mm |
1,230 |
| Engine power, kW (hp) |
176 (240) |
| Number of video cameras, pcs. |
4 (+1 on a detachable dozer blade with a gripper) |
| Type of main video cameras |
analog, blast-proof |
| Cameras' azimuth angle of view, deg. |
70 |
| Control and video transmission range, m |
|
| in the open |
up to 800 |
| in urban area |
up to 300 |
| Weight of the remote control set, not more, kg |
15 |
