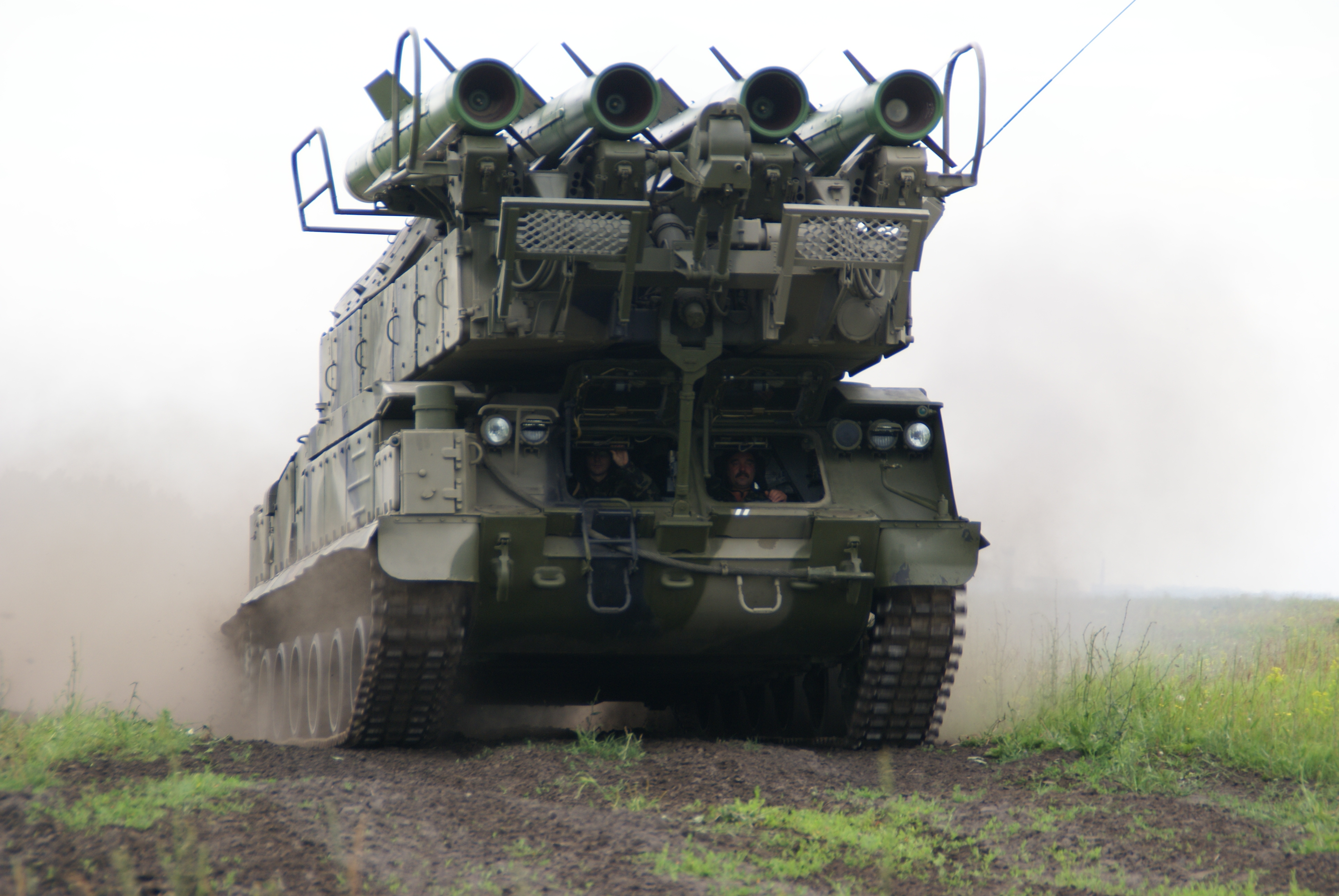

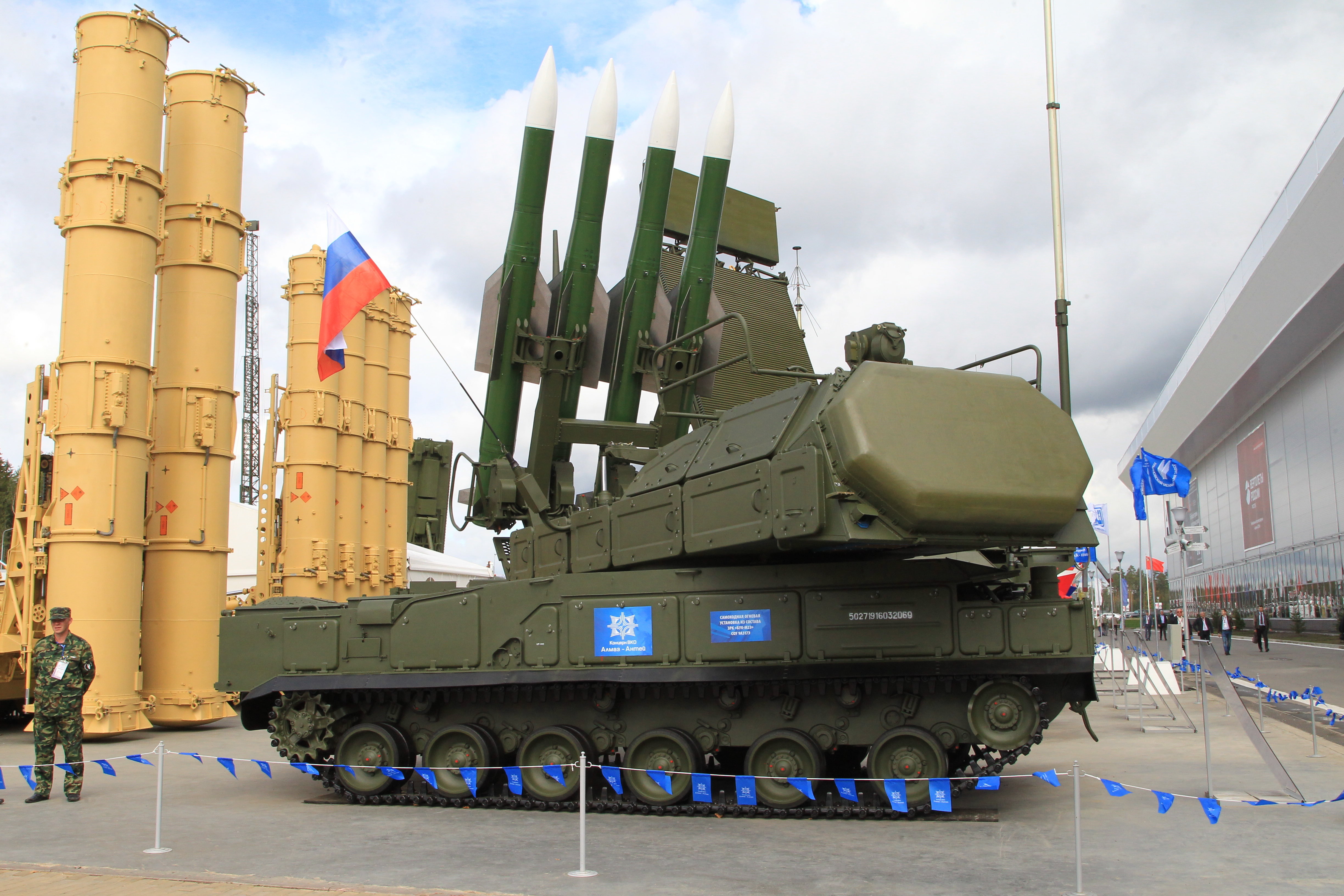

"Buk-M2E" (9K317E)

The modern medium-range air defense system "Buk -M2E" can be used for air defence of troops (military installations) in various forms of combat operations, administrative and industrial facilities and territories of the country

The ADMS has a high probability of air targets engagement and has the ability to autonomously use self-propelled firing units (targets illumination and guidance radars with launcher -loading installations).

The "Buk-M2E" ADMS is designed to destroy strategic and tactical aircraft, helicopters, including hovering ones, cruise missiles and other aerodynamic air targets, in the entire range of their possible use, tactical ballistic and aviation missiles, guided bombs in conditions of intense radio-electronic and fire countermeasures from the enemy, as well as for firing at surface and ground radio-contrast targets.



Characteristics

The fully equipped system provides simultaneous engagement of up to 24 air targets flying from any direction at altitudes from 0.015 km to 25 km

Engagement area when firing at aircraft is:


in range from 3 km to 40 km at a target speed of 830 m/s
  up to 45 km at a target speed of 300 m/s
Maximum engagement range of tactical ballistic missiles

20 km

Maximum engagement range of cruise missiles at an altitude of 100 m is 20 km
Maximum speed of engaged ballistic missiles 1200 m/s
